Fittings & Connectors
Precision brass fittings built to print for fluid, gas, hydraulic and pneumatic systems. Pipe, compression, hose and flare fittings, plus adapters, couplings, elbows, tees, reducers, unions and ferrules, in every common thread standard. Manufactured by Jay Ashapura Precision Metals under ISO 9001 and IATF 16949 certified systems.

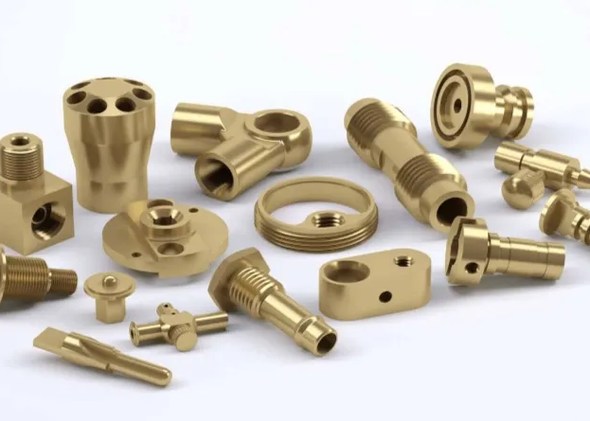

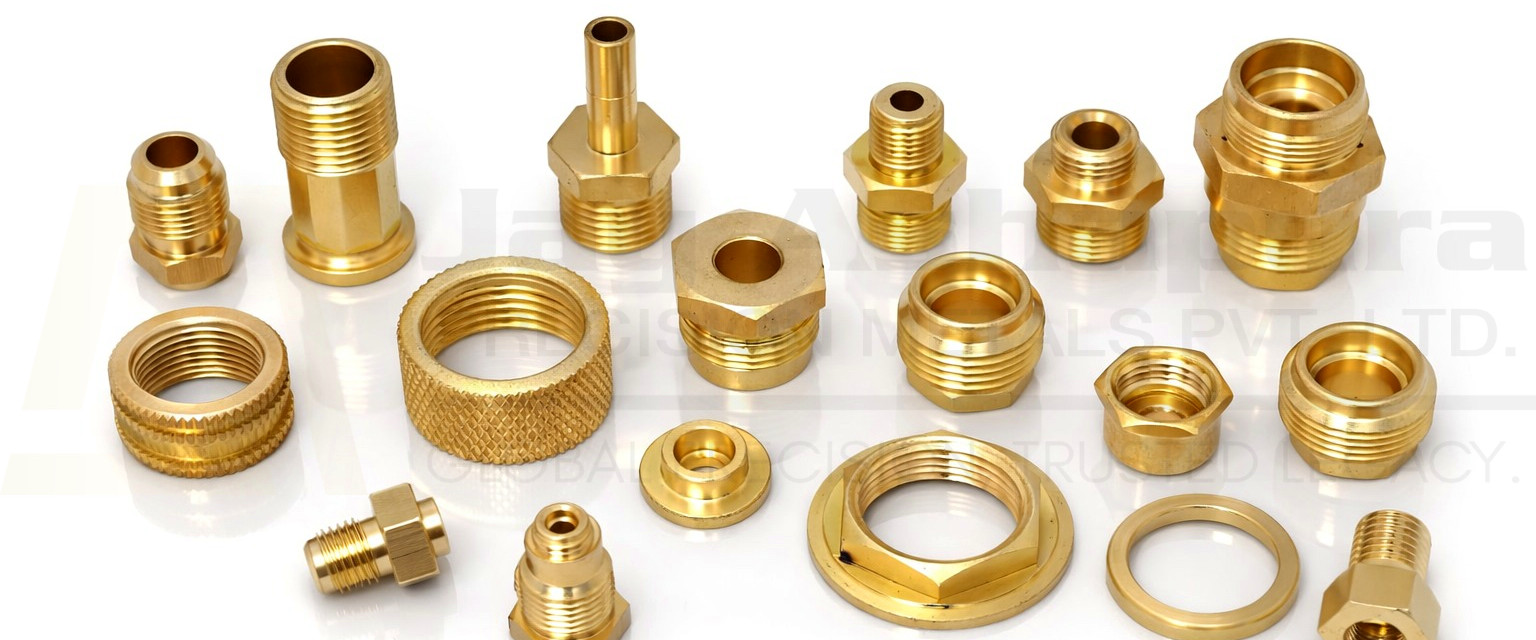

The actual parts
Fittings made at Jay Ashapura.

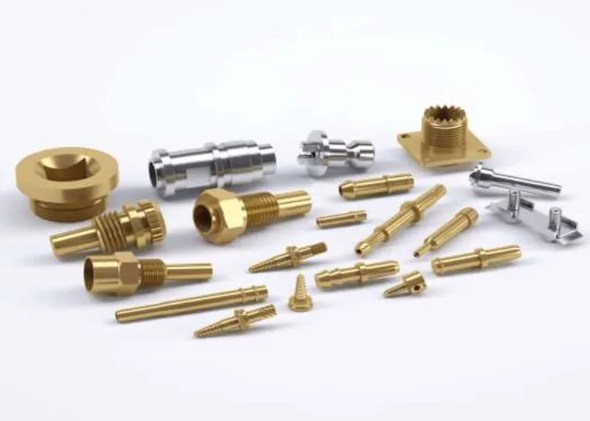

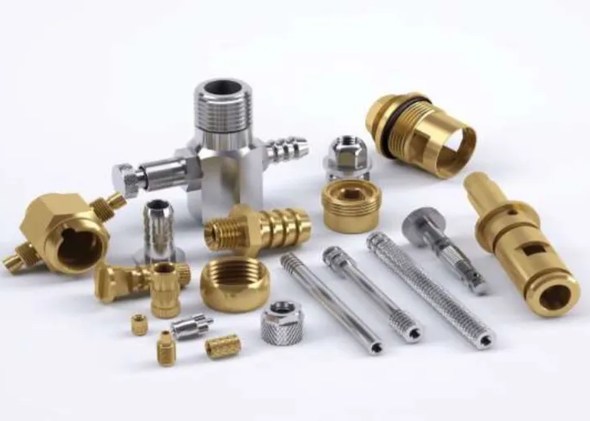

Machined fittings, adaptors, connectors and bodies across thread standards and sizes, all produced to customer drawings.
Thread standards
- ISO Metric
- UNC
- UNF
- BA
- BSW
- BSP
- NPT
- Custom to drawing
Finishes
- Natural brass
- Electro tin
- Nickel
- Chrome
- Silver
- Gold
- Zinc blue
Thread standard, port configuration and finish all come from your drawing. Send your drawing →
Types we supply
Every fitting type, to your spec.
Standard catalog geometries or fully custom to your drawing, machined, forged and thread-formed to your exact requirement.
Connection Fittings
- Pipe Fittings

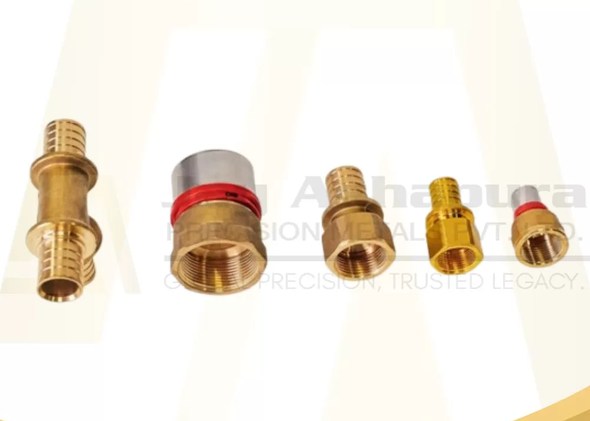

- Compression Fittings
- Hose Fittings & Barbs
- Flare Fittings (SAE 45° / JIC 37°)
- Push-to-Connect (Pneumatic)
- Tube Fittings
- Quick-Connect Couplings
Adaptors & Connectors
- Adapters
- Couplings
- Nipples
- Unions
- Reducers
- Bulkhead Fittings
- Reducing Bushings
Directional & Sealing
- Elbows (45° / 90°)
- Tees & Crosses
- Ferrules & Olives
- Plugs & Caps
- Banjo Fittings
- Bleed & Drain Fittings
Specialised Fittings
- Hydraulic Fittings
- Gas & LPG (POL)
- Refrigeration Fittings
- Instrumentation Fittings
- Manifolds
- Custom Fittings
Not only brass. The same part can be produced in stainless steel, copper, aluminium and other engineering alloys. Send the drawing with the grade you need and it is quoted in that material. See full material range →
Where they're used
Applications & industries served.
Applications
- Water & plumbing lines
- Compressed-air & pneumatic systems
- Hydraulic power lines
- Gas & LPG lines
- Instrumentation & metering
- Refrigeration & HVAC
- Fuel & fluid transfer
Industries served
- Plumbing & sanitary
- HVAC & refrigeration
- Oil & gas
- Automotive
- Marine
- Agriculture & irrigation
- Water treatment
See all the sectors we serve on our Industries page.
Materials for fittings
The right brass for what flows through it.
Fitting performance starts with the alloy, matched to the fluid or gas it carries, the working pressure and the compliance the application demands. See full quality & traceability →
Free-Cutting Brass
C36000 · CW614N, general-purpose air, oil & water fittings
DZR Brass
CW602N, dezincification-resistant for potable & aggressive water
Low-Lead & Eco Brass
CW511L / eco grades, drinking-water lead compliance
Naval Brass
Seawater corrosion resistance for marine fittings
How they're made
Manufacturing process.
Bar & forging stock
Certified brass bar or hot-stamped forgings selected for the fitting's pressure and thread requirements.
CNC turning & machining
Bodies machined on CNC and Swiss lathes; ports, seats and hex profiles formed to drawing.
Thread forming
NPT, BSP, BSPT, metric, UNF, JIC and SAE threads cut or rolled and gauge-verified.
Finishing & test
Plating or polishing as specified, then leak/pressure testing and final inspection before packing.
*where the application requires it. Thread standards: NPT · NPTF · BSP · BSPT · Metric · UNF/UNC · JIC 37° · SAE 45°.
Finishes, inspection & packaging
Delivered ready to install.
Surface finishes
- Natural brass
- Nickel-plated
- Chrome-plated
- Tin (potable)
- Electroless nickel
- Polished / bright-dipped
Inspection
- Thread gauge (go/no-go)
- Dimensional (FAI)
- Bore & seat check
- Surface finish
Testing
- Leak test
- Pressure test
- Salt spray (plated)
- Material verification
Packaging
- Bulk / poly-bagged
- Individually bagged
- Blister / kit packs
- Custom-labeled
Documentation ships with the order, including material test certificates plus dimensional and test reports. See our full quality standards →
Custom fittings
Built to your drawing.
Non-standard thread? Special port configuration? A fitting you can't source anymore? Send a drawing or a sample and we'll build it to print, from prototype to production, in the right brass grade, thread standard and finish.
- Reverse engineering from sample
- Custom & special threads
- Multi-port & manifold bodies
- Prototype to high-volume
Fittings FAQ
Questions, answered.
Which thread standards do you cut on fittings?
ISO Metric, UNC, UNF, BA, BSW, BSP and NPT, plus fully custom threads to your drawing or sample. Threads are gauge-verified before dispatch.
Can you match a fitting from a physical sample?
Yes. Send the sample and we will reverse-engineer the dimensions, thread and finish, confirm the brass grade, and quote it to match.
What thread standards do you make brass fittings in?
We manufacture brass fittings in all common thread standards, NPT, NPTF, BSP, BSPT, metric, UNF/UNC, JIC 37° and SAE 45° flare. Custom and special threads are produced to your drawing or sample. Not sure which standard your application needs? See our guide to NPT vs BSP fitting threads.
Do you offer lead-free brass fittings for potable water?
Yes. We supply low-lead and eco-brass fittings that meet drinking-water lead limits, and dezincification-resistant (DZR) brass for aggressive or chlorinated water. Compliance documentation is provided on request.
Can you match an existing brass fitting from a sample?
Yes. Send a sample or drawing and we'll reverse-engineer the fitting to match dimensions, thread and finish, then confirm the brass grade and quote it.
Do you pressure-test and leak-test brass fittings?
Yes. Fittings can be pressure- and leak-tested to your specification, with thread-gauge and dimensional inspection reports supplied with the shipment.
What is your minimum order quantity for brass fittings?
We handle everything from prototype runs to high-volume production. Minimums depend on the part and thread tooling required, send your requirement and we'll advise the most cost-effective quantity.
Related: Valve Components · Plumbing, PEX & HVAC · Manufacturing capabilities
Need fittings?
Send your drawings, thread spec or a sample. We'll come back with the right brass grade, finish and a clear quote.
